W30L85H15 PVC 450G- Single trusses- Dome Shape Shelter

$7,549.00

Feature

Resistant toward water, UV and fading
Style: Freestanding
There is an average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.
Huge capacity for trucks, automobiles, and more bulk storage
Protect belongings from wind, snow and rain
CSA/TUV Snow Rating Test Report
SGS fabric Certificate
Type: Prefabricated Building
Certificate: SGS
Condition: New

Package Size

L*W*H (inch): 115*30*46
Weight (lb): 2999
Please have a forklift or equivalent ready for unloading

Categories: Shelters

Description

Description

Model	S308515R

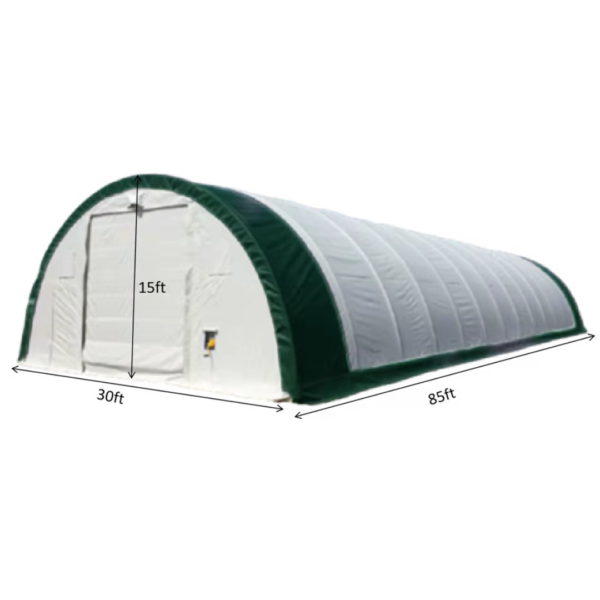

Dimensions	30ft x 85ft x 15ft
Door dimension	W11 ½’ x H12 7/16’
Total trusses	14 Units
Truss spacing	6-9/16’ (2m)
Total large anchor plates	28 units
Truss tube	Gauge 15
Snow Rating	1.77 kpa / 37 pounds per sq. foot
Wind Load	50 miles per hour
Frame	Galvanized steel tubes

Snow Rate Test Result:

308515R	Test Load		Deflection
308515R	Lb	Kpa	Point A (inch)	Point B (inch)	Point C (inch)
Step 1	0	0	0	0	0
Step 2	1005	1.52	1.4	1.6	1.2
Step 3	1507	2.28	2.2	2.3	1.6
Step 4	Keep the test load until 30 minutes
Step 5	Remove the test load		0.6	1.1	1.2
Step 6	The test sample can withstand the applied test load without damage.
