Description

‘- Capacity (kg) 3TONS

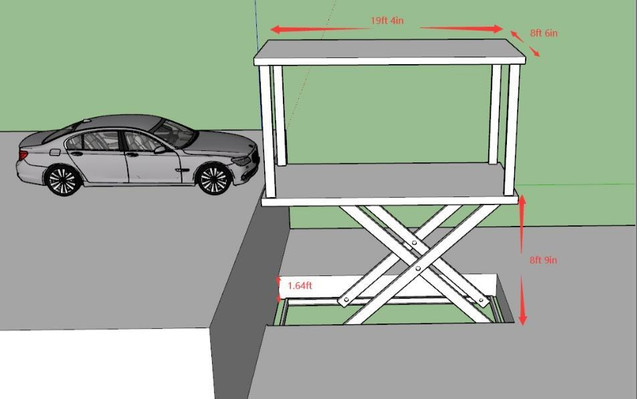

– Lifting height Total height 3.2m, Net lifting height 2.667(8ft 9in)m
– Speed (m/min) 4m/min
– Motor 4.4KW, inside lift body
– Platform size 2.59(8ft 6in)*5.893(19ft 4in)m
– Stops 2 stops
– Power voltage 220v 1phase 60hz
– 2 stops, Total height 3.2m, Net lifting height 2.667m(8ft 9in)

*** Structure specification ***

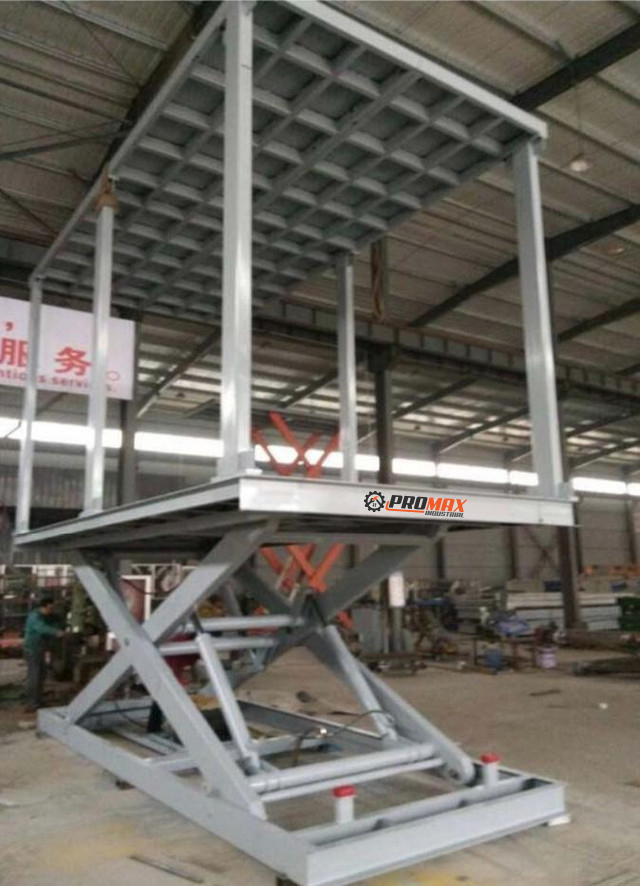

– Scissor structure 200*100*5mm square steel pipe 2 layers
– Platform and bottom 18# Channel steel
– Surface plate 4mm anti-skid steel plate

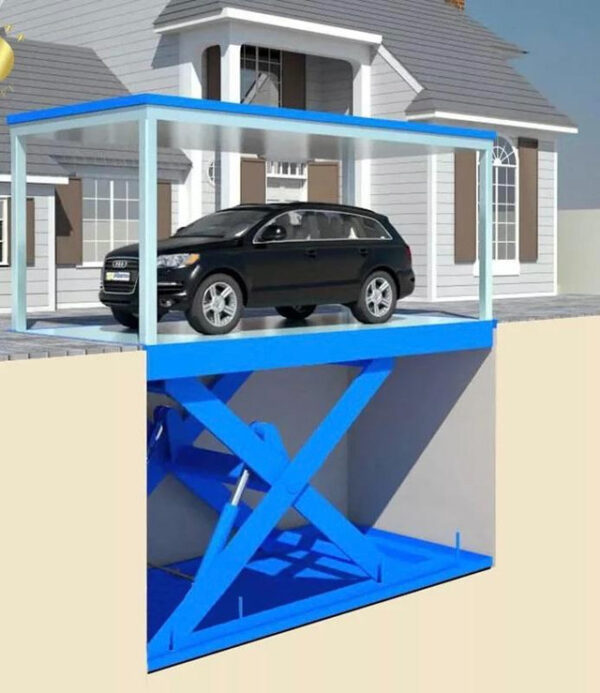

– Pit depth(mm) 500mm
– Hydraulic cylinder 90 2pcs

*** Safety measures***

– Auto stop The platform will stop when power is failure
– Explosion-proof valves If the oil pipe or hydraulic cylinder leak oil, the platform will
not suddenly get down.

– Stop button You can press the stop button in an emergency, the elevator will stop

– Anti-skid platform plate Cargo on platform will not slide when lift running
